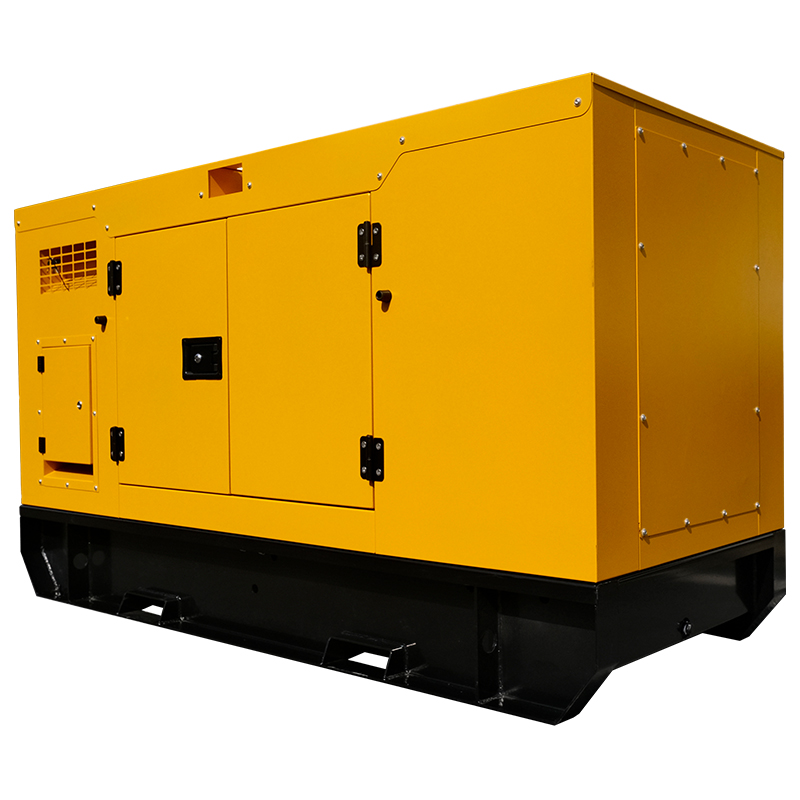

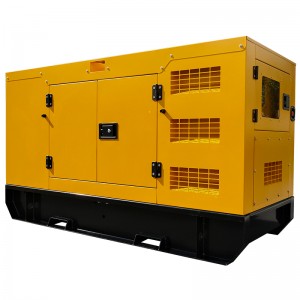

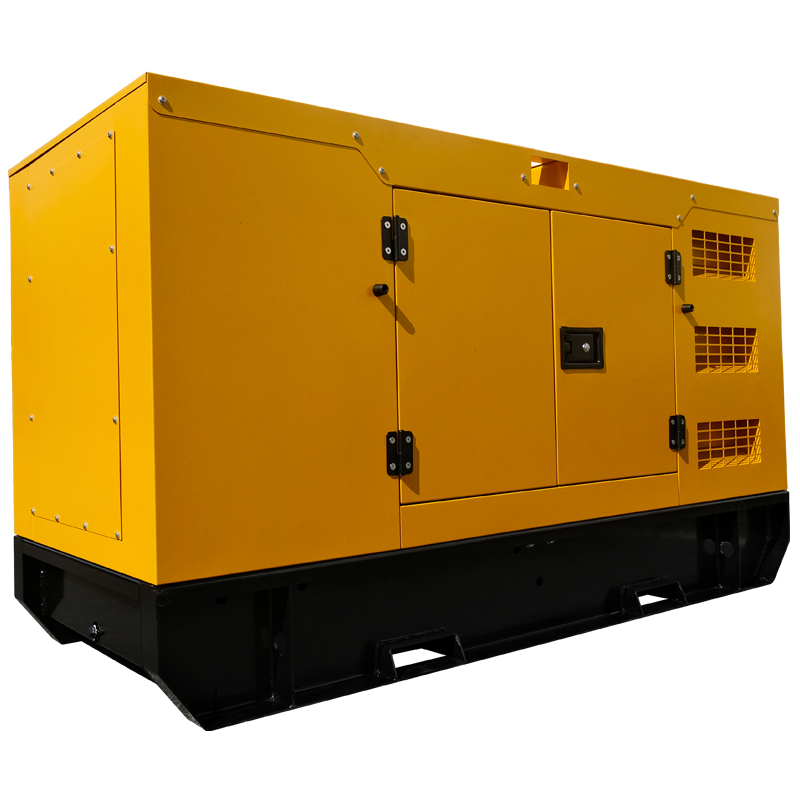

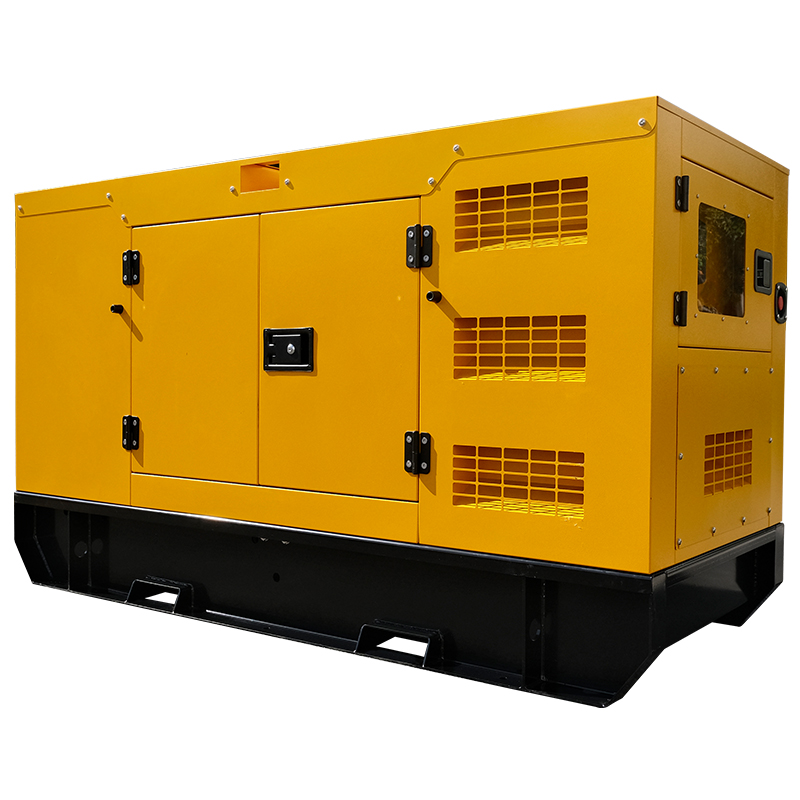

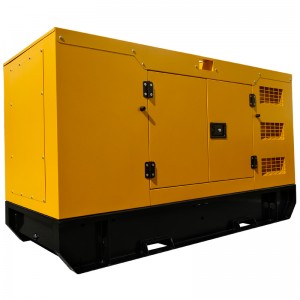

Baudouin Silent Type Diesel Generator
In 1903, Mr Baudouin Marseille city created baudouin company.
For more than 100 years, baudouin company has been the main supplier of the French military military diesel engine.
At the end of 2008, the French baudouin company officially became a wholly owned subsidiary of weichai group.
In 2010, weichai will baudouin products imported to China.
Baudouin power assembly system solutions company with weichai perfect combination of professional and efficient service network to provide Chinese customers beyond the power of dreams.
Baudouin is internationally renowned engine manufacturer, was founded in 1903, more than one hundred years, baudouin company has always been the main supplier of the French military diesel engine, has perfect power assembly system solutions, at the end of 2008 officially became weichai group, a wholly owned subsidiary of baudouin products imported to China in 2010.
Currently, baudouin products made in France, imported from sales to China, and become an important primary weichai products.
■Moteurs Baudouin service in over 95 countries;
■ Commissioning;
■ Multi level training programs
■ Product support,diagnostics and preventive recommendations;
■ Services from standard maintenance to complete overhaul;
■ Long overhaul period: 32000 hours;
|
Model |
Prime Power |
Standby Power |
Engine Model |
Dimension |
Weight |
||
|
KVA |
KW |
KVA |
KW |
MM |
KG |
||
|
TPD461B5 |
461 |
369 |
507 |
406 |
6M33D447E200 |
4000*1500*2150 |
4500 |
|
TPD461B5 |
461 |
369 |
507 |
406 |
6M26D447E200 |
4000*1500*2150 |
4500 |
|
TPD500B5 |
500 |
400 |
550 |
440 |
6M33D484E200 |
4000*1500*2150 |
4600 |
|
TPD500B5 |
500 |
400 |
550 |
440 |
6M26D484E200 |
4000*1500*2150 |
4600 |
|
TPD591B5 |
591 |
473 |
650 |
520 |
6M33D572E200 |
4000*1500*2150 |
5000 |
|
TPD625B5 |
625 |
500 |
687.5 |
550 |
6M33D605E200 |
4200*1600*2150 |
5200 |
|
TPD818B5 |
818 |
654 |
900 |
720 |
12M33D792E200 |
6000*2250*2540 |
9600 |
|
TPD818B5 |
818 |
654 |
900 |
720 |
12M26D792E200 |
5500*2250*2540 |
9600 |
|
TPD931B5 |
931 |
745 |
1025 |
820 |
12M33D902E200 |
6000*2250*2540 |
9800 |
|
TPD931B5 |
931 |
745 |
1025 |
820 |
12M26D902E200 |
5500*2250*2540 |
9800 |
|
TPD1000B5 |
1000 |
800 |
1100 |
880 |
12M33D968E200 |
6000*2250*2540 |
10000 |
|
TPD1000B5 |
1000 |
800 |
1100 |
880 |
12M26D968E200 |
5500*2250*2540 |
10000 |
|
TPD1143B5 |
1143 |
915 |
1257 |
1007 |
12M33D1108E200 |
6000*2250*2540 |
10500 |
|
TPD1250B5 |
1250 |
1000 |
1375 |
1100 |
12M33D1210E200 |
6000*2250*2540 |
10800 |
|
Model |
Prime Power |
Standby Power |
Engine Model |
Dimension |
Weight |
||
|
KVA |
KW |
KVA |
KW |
MM |
KG |
||
|
TPD461B6 |
461 |
369 |
507 |
406 |
6M26D447E201 |
4000*1500*2150 |
4400 |
|
TPD523B6 |
523 |
418 |
575 |
460 |
6M26D506E201 |
4000*1500*2150 |
4800 |
|
TPD523B6 |
523 |
418 |
575 |
460 |
6M33D506E201 |
4000*1500*2150 |
4800 |
|
TPD591B6 |
591 |
473 |
650 |
520 |
6M33D572E201 |
4000*1500*2150 |
4800 |
|
TPD654B6 |
654 |
523 |
719 |
575 |
6M33D632E201 |
4200*1600*2150 |
5000 |
|
TPD819B6 |
819 |
655 |
900 |
720 |
12M26D792E201 |
5500*2250*2540 |
9800 |
|
TPD931B6 |
931 |
745 |
1025 |
820 |
12M33D902E201 |
6000*2250*2540 |
9800 |
|
TPD931B6 |
931 |
745 |
1025 |
820 |
12M26D902E201 |
5500*2250*2540 |
9800 |
|
TPD1045B6 |
1045 |
836 |
1150 |
920 |
12M33D1012E201 |
6000*2250*2540 |
10000 |
|
TPD1045B6 |
1045 |
836 |
1150 |
920 |
12M26D1012E201 |
5500*2250*2540 |
10000 |
|
TPD1143B6 |
1143 |
915 |
1257 |
1007 |
12M33D1108E201 |
6000*2250*2540 |
10000 |
|
TPD1306B6 |
1306 |
1045 |
1437 |
1150 |
12M33D1265E201 |
6000*2250*2540 |
10000 |
