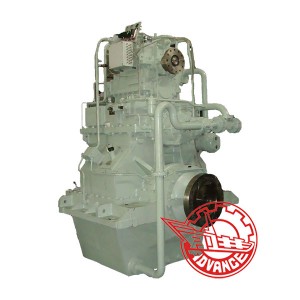

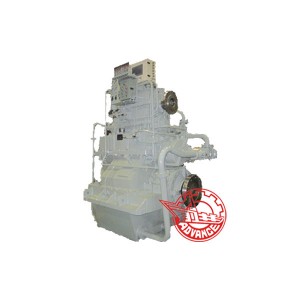

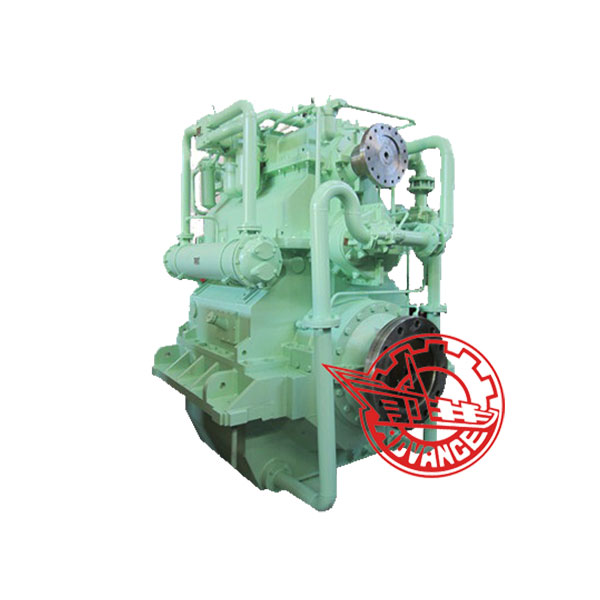

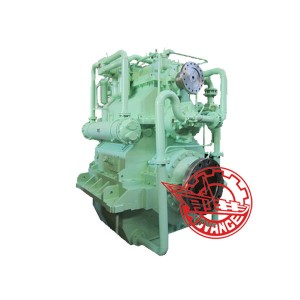

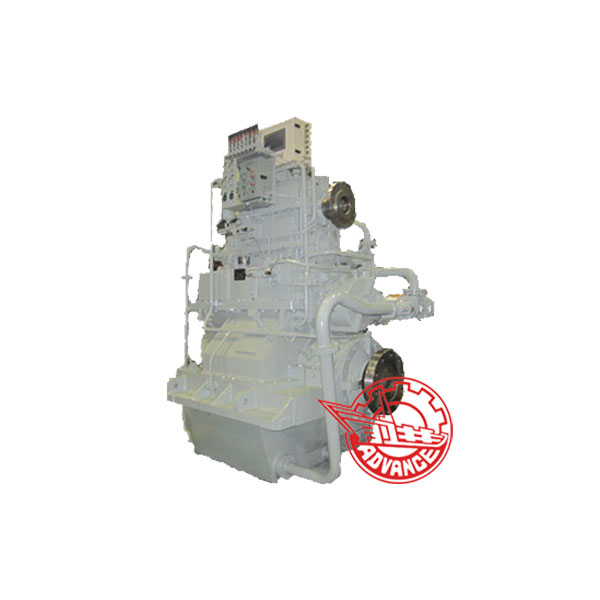

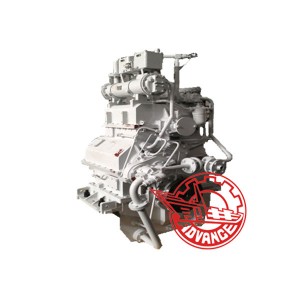

GCS GCST GCSE–series Marine Gearbox

Model

Input Speed

(r/min)

Reduction Ratio

(i)

Trans. Capacity

(kW/r·min-1)

Rated Thrust

(kN)

Net Weight

(kg)

GCS320

400-1800

1.9688

0.537

100

320

2.5185

2.9583

3.5238

4.0

GCST5

400-1800

4.5

0.537

120

445

5

5.55

5.947

GCSE5

400-1800

6.5-8

0.537

170

570

GCSE5A

400-1800

6.42

0.537

175

475

GCS350

400-1800

2.0

0.684

113

350

2.5566

3.0

3.5714

4.0526

GCST6

400-1800

4.5

0.684

140

480

5

5.55

5.947

GCSE6

400-1800

6.5-8

0.684

200

615

GCS390

400-1800

2.0323

0.919

140

390

2.4815

2.9167

3.4762

3.9474

GCST9

400-1800

4.5

0.919

220

545

5

5.55

5.947

GCSE9

400-1800

6.5-8

0.919

270

700

GCS410

400-1600

2.0

1.169

175

410

2.5357

2.96

3.50

3.95

GCST11

400-1600

4.52

1.169

220

570

5.043

5.52

5.95

GCSE11

400-1600

6.5-8

1.169

270

735

GCS450

400-1600

1.9730

1.573

220

455

2.5484

2.9286

3.5833

4.0

GCST15

400-1600

4.464

1.573

270

630

5.08

5.458

5.955

GCST20

400-1400

4.5

2.051

284

680

5

5.5

6

GCSE15

400-1600

6.5-8

1.573

300

810

GCS490

400-1400

2.0323

2.051

270

490

2.4815

3.0870

3.4762

3.9474

GCSE20

400-1400

6.5-8

2.051

350

875

GCS535

400~1800

5.0526

0.98

270

535

GCS535B

400~1800

4.7

0.98

270

535

GCS540

400-1200

1.9714

2.647

284

540

2.4667

3.0

3.5217

3.9524

GCST26

400-1200

4.577

2.647

350

750

5.042

5.59

5.952

GCSE26

400-1200

6.5-8

2.647

400

960

GCS590

400-1200

1.9714

3.448

360

590

2.4667

3

3.5217

3.9524

GCS600

400-1200

3.077

4.1625

360

600

GCST33

400-1200

4.542

3.448

540

820

5.045

5.6

5.947

GCST34

400-1200

5.33

3.448

450

860

GCSE33

400-1200

6.5-8

3.448

550

1055

GCS660

400-1200

2.0

4.625

540

668

2.536

2.96

3.5

3.95

GCST44

400-1200

4.52

4.625

700

924

5.0

5.5714

5.96

GCSE44

400-1200

6.5-8

4.625

800

1185

GCS700B

400-1200

2.0000

4.744

450

700

2.5517

3.0000

3.5217

4.0000

4.623

4.4737

4.183

GCS740A

400-1200

2.92857

4.625

450

740

GCS750

300-900

1.9714

6.99

700

750

2.4667

3.0

3.5217

3.9524

GCST66

300-900

4.4815

6.99

1000

1064

4.96

5.4348

6.0

GCS760

300-900

1.941

8.111

750

768

2.536

3.0

3.5

3.95

GCS780

400-1200

2~4.85

4.625

450

780

GCST77

300-900

4.5

8.111

1000

1100

5

5.5

6

GCS850

300-800

1.9714

9.6

800

855

2.4667

3.0

3.5217

3.9524

GCST91

300-800

4.5

9.6

1000

1190

5

5.5

6

GCS900

200-800

2.0

11.282

980

900

2.5172

3.08

3.4348

4.1

GCST108

200-800

4.5

11.282

1400

1230

5

5.5

6

GCS880

200-650

2.0

12.063

1000

880

2.5357

2.96

3.50

3.95

GCST115

200-650

4.5

12.063

1400

1260

5

5.5

6

GCS950

200-650

2

14

1200

965

2.536

2.96

3.5

3.95

GCST135

200-650

4.5

14

1400

1350

5

5.5

6

GCS1000

200-560

2.0

17.7143

1400

1018

2.5357

2.96

3.50

3.95
