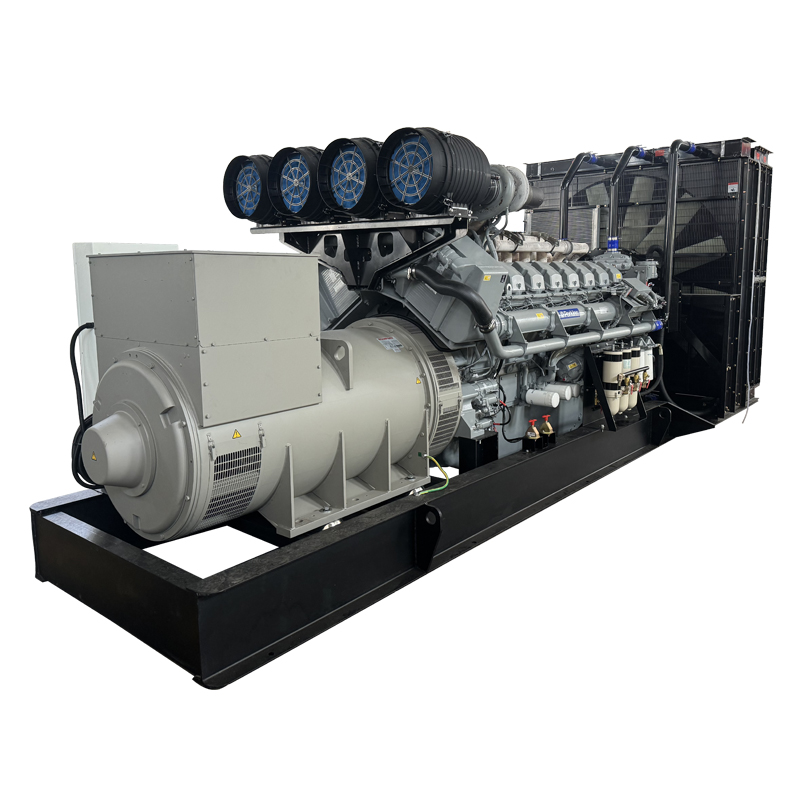

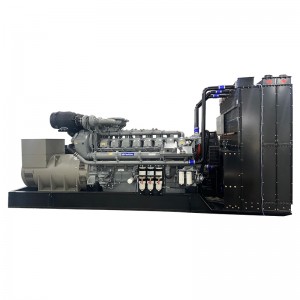

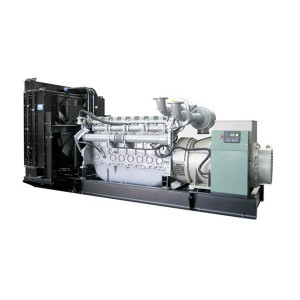

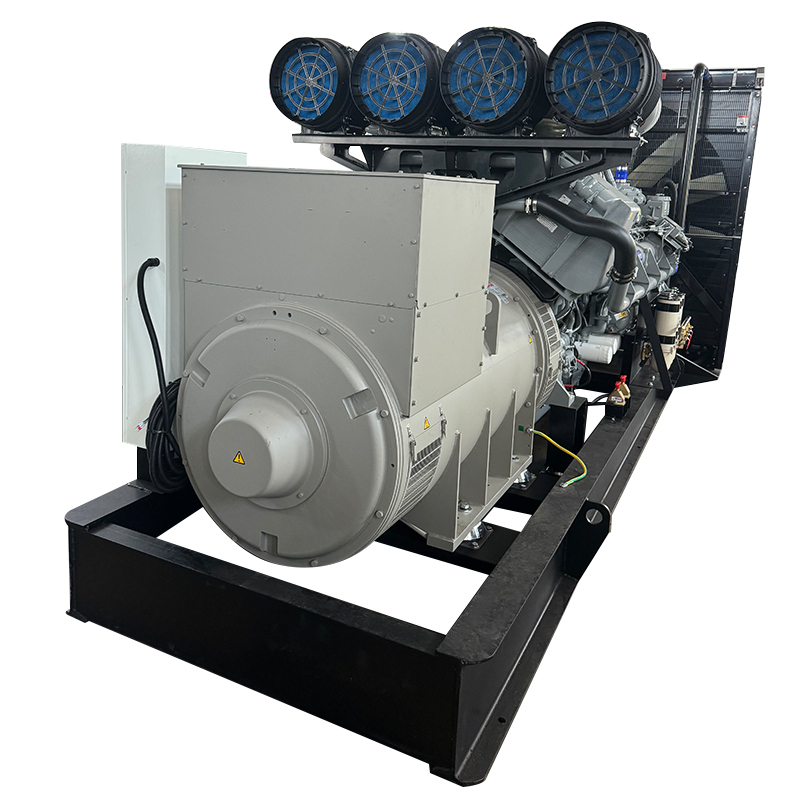

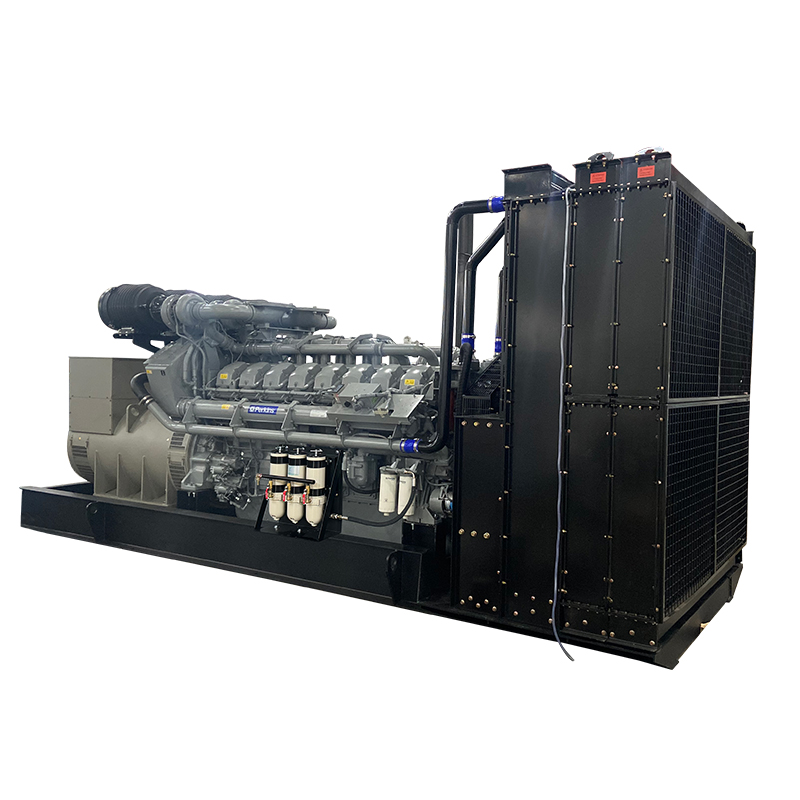

PERKINS Open Type Diesel Generator
TONTEK POWER has decades of production experience in Perkins generator sets, is the important OEM partner for Perkins.The Perkins series diesel gen-sets produced by our company have the characteristics of compact structure, light weight, strong power, benefit for energy saving and environmental protection, high reliability and easy maintenance etc., which can meet the needs of different customers. Perkins engine with complete product series and wide power coverage has remarkable stability, reliability, durability and service life, can provide you with low operating costs and fast “return” cycle, with wide applications in communications, Industry, outdoor engineering, mining, risk resistance, military and other fields. The 400, 1100, 1300, 2000 and 4000 series diesel engines are produced by Perkins and its production plants in accordance with its global unified quality standards. Perkins’ worldwide service network provides customers with dependable service guarantee.
Product advantages of Perkins diesel generator sets：
1. Outstanding shock absorption performance: Optimal design of shock absorption system based on computer dynamic simulation.
2. Advanced control system: Full monitoring system control strategy found on reliability design.
3. Green environmental protection: Diesel generator set combined energy saving and low emission in one.
4. Low noise: Tailor custom-engineered exhaust silencer system for each set.
5. Excellent performance: stable operation, low vibration, low fuel and oil consumption, long operating life and overhaul time.
|
Model |
Prime Power |
Standby Power(KVA/KW) |
Engine Model |
Dimension(MM) |
Weight(KG) |
||
|
TPD9P5-1 |
9 |
7 |
10 |
8 |
403A-11 G1 |
1350×500×1090 |
335 |
|
TPD9P5-2 |
9 |
7 |
10 |
8 |
403D-11G |
1350×500×1090 |
335 |
|
TPD13P5-1 |
13 |
10 |
14 |
11 |
403A-15G1 |
1430×500×1150 |
400 |
|
TPD13P5-2 |
13 |
10 |
14 |
11 |
403D-15G |
1435×500×1150 |
415 |
|
TPD15P5 |
15 |
12 |
16 |
13 |
403A-15G2 |
1435×500×1150 |
415 |
|
TPD20P5-1 |
20 |
16 |
22 |
18 |
404A-22G1 |
1610×560×1195 |
525 |
|
TPD20P5-2 |
20 |
16 |
22 |
18 |
404D-22G |
1610×560×1195 |
525 |
|
TPD27P5 |
27 |
22 |
30 |
24 |
404D-22TG |
1680×560×1195 |
550 |
|
TPD30P5 |
30 |
24 |
32 |
26 |
1103A-33G |
1840×700×1270 |
860 |
|
TPD45P5 |
45 |
36 |
50 |
40 |
1103A-33TG1 |
1960×700×1350 |
870 |
|
TPD60P5 |
60 |
48 |
66 |
53 |
1103A-33TG2 |
2050×700×1350 |
980 |
|
TPD65P5 |
65 |
52 |
72 |
57 |
1104A-44TG1 |
2200×700×1350 |
1050 |
|
TPD80P5-1 |
80 |
64 |
88 |
70 |
1104A-44TG2 |
2200×700×1350 |
1080 |
|
TPD80P5-2 |
80 |
64 |
88 |
70 |
1104C-44TAG1 |
2280×700×1350 |
1150 |
|
TPD100P5 |
100 |
80 |
110 |
88 |
1104C-44TAG2 |
2280×700×1350 |
1250 |
|
TPD135P5 |
135 |
108 |
150 |
120 |
1106A-70TG1 |
2565×850×1425 |
1522 |
|
TPD150P5 |
150 |
120 |
165 |
132 |
1106A-70TAG2 |
2750×850×1350 |
1580 |
|
TPD180P5 |
180 |
144 |
200 |
160 |
1106A-70TAG3 |
2850×850×1350 |
1590 |
|
TPD200P5 |
200 |
160 |
220 |
176 |
1106A-70TAG4 |
2850×1045×1825 |
1600 |
|
TPD231P5 |
231 |
185 |
254 |
203 |
1506A-E88TAG2 |
2980×1055×1695 |
2335 |
|
TPD257P5 |
257 |
206 |
283 |
226 |
1506A-E88TAG3 |
2980×1055×1695 |
2350 |
|
TPD307P5 |
307 |
246 |
338 |
270 |
1506A-E88TAG5 |
3080×1090×1700 |
2500 |
|
TPD350P5 |
350 |
280 |
400 |
320 |
2206C-E13TAG2 |
3460×1150×2030 |
2980 |
|
TPD400P5 |
400 |
320 |
450 |
360 |
2206C-E13TAG3 |
3460×1150×2030 |
3135 |
|
TPD455P5 |
455 |
364 |
500 |
400 |
2506C-E15TAG1 |
3780×1270×2020 |
3760 |
|
TPD500P5 |
500 |
400 |
550 |
440 |
2506C-E 15TAG2 |
3780×1270×2020 |
3880 |
|
TPD591P5 |
591 |
473 |
650 |
520 |
2806C-E 18TAG 1A |
3780×1536×2180 |
4555 |
|
TPD650P5 |
650 |
520 |
700 |
560 |
2806A-E18TAG2 |
3780×1536×2180 |
4600 |
|
TPD746P5 |
746 |
597 |
820 |
656 |
4006-23TAG2A |
4250×1690×2150 |
6460 |
|
TPD800P5 |
800 |
640 |
880 |
704 |
4006-23TAG3A |
4250×1690×2150 |
6500 |
|
TPD910P5 |
910 |
728 |
1001 |
800 |
4008TAG1A |
4735×2261×2256 |
7400 |
|
TPD1022P5-1 |
1022 |
818 |
1125 |
900 |
4008TAG2A |
4735×2261×2256 |
7450 |
|
TPD1022P5-2 |
1022 |
818 |
1125 |
900 |
4008TAG2 |
4735×2261×2256 |
7450 |
|
TPD1125P5 |
1125 |
900 |
1250 |
1000 |
4008-30TAG3 |
4735×2261×2256 |
7450 |
|
TPD1250P5-1 |
1250 |
1000 |
1375 |
1100 |
4012-46TWG2A |
4800×2100×2297 |
9030 |
|
TPD1250P5-2 |
1250 |
1000 |
1375 |
1100 |
4012-46TWG2 |
4800×2100×2297 |
9050 |
|
TPD1375P5 |
1375 |
1100 |
1500 |
1200 |
4012-46TWG3A |
4800×2100×2297 |
9100 |
|
TPD1500P5 |
1500 |
1200 |
1650 |
1320 |
4012-46TAG2A |
4900×2100×2297 |
9730 |
|
TPD1688P5 |
1688 |
1350 |
1850 |
1480 |
4012-46TAG3A |
4900×2100×2297 |
9730 |
|
TPD1850P5 |
1850 |
1480 |
2000 |
1600 |
4016TAG1A |
5035××2597×2150 |
10300 |
|
TPD2000P5-1 |
2000 |
1600 |
2200 |
1760 |
4016TAG2A |
5035××2597×2150 |
10300 |
|
TPD2000P5-2 |
2000 |
1600 |
2200 |
1760 |
4016-61TRG2 |
5250××2600×2150 |
10270 |
|
TPD2250P5 |
2250 |
1800 |
2500 |
2000 |
4016-61TRG3 |
5250××2600×2150 |
11000 |
|
Model |
Prime Power |
Standby Power(KVA/KW) |
Engine Model |
Dimension(MM) |
Weight(KG) |
||
|
TPD11P6 |
11 |
9 |
13 |
10 |
403D-11G |
1350×500×1090 |
335 |
|
TPD15P6 |
15 |
12 |
16 |
13 |
403D-15G |
1435×500×1150 |
415 |
|
TPD17P6 |
17 |
14 |
19 |
15 |
403A-15G2 |
1435×500×1150 |
415 |
|
TPD24P6 |
24 |
19 |
26 |
21 |
404D-22G |
1610×560×1195 |
525 |
|
TPD33P6 |
33 |
26 |
35 |
29 |
404D-22TG |
1610×560×1195 |
525 |
|
TPD35P6 |
35 |
28 |
38 |
30 |
1103A-33G |
1840×700×1270 |
860 |
|
TPD54P6 |
54 |
43 |
59 |
47 |
1103A-33TG1 |
1960×700×1350 |
870 |
|
TPD68P6 |
68 |
55 |
75 |
60 |
1103A-33TG2 |
2050×700×1350 |
980 |
|
TPD76P6 |
76 |
61 |
84 |
67 |
1104A-44TG1 |
2200×700×1350 |
1050 |
|
TPD90P6-1 |
90 |
73 |
100 |
80 |
1104A-44TG2 |
2200×700×1350 |
1080 |
|
TPD90P6-2 |
90 |
72 |
100 |
80 |
1104C-44TAG1 |
2280×700×1350 |
1150 |
|
TPD115P6 |
115 |
92 |
125 |
100 |
1104C-44TAG2 |
2280×700×1350 |
1250 |
|
TPD152P6 |
152 |
122 |
169 |
135 |
1106A-70TG1 |
2565×850×1425 |
1522 |
|
TPD169P6 |
169 |
135 |
188 |
150 |
1106A-70TAG2 |
2750×850×1350 |
1580 |
|
TPD197P6 |
197 |
158 |
219 |
175 |
1106A-70TAG3 |
2850×850×1350 |
1590 |
|
TPD248P6 |
248 |
198 |
273 |
218 |
1506A-E88TAG2 |
2980×1055×1695 |
2335 |
|
TPD290P6 |
290 |
232 |
320 |
256 |
1506A-E88TAG3 |
2980×1055×1695 |
2350 |
|
TPD352P6 |
352 |
282 |
390 |
312 |
1506A-E88TAG5 |
3080×1090×1700 |
2500 |
|
TPD400P6-1 |
400 |
320 |
438 |
350 |
2206C-E13TAG2 |
3460×1150×2030 |
2980 |
|
TPD400P6-2 |
400 |
320 |
438 |
350 |
2206C-E13TAG3 |
3460×1150×2030 |
3135 |
|
TPD500P6-1 |
500 |
400 |
563 |
450 |
2506C-E15TAG1 |
3780×1270×2020 |
3760 |
|
TPD500P6-2 |
500 |
400 |
563 |
450 |
2506C-E 15TAG2 |
3780×1270×2020 |
3880 |
|
TPD625P6-1 |
625 |
500 |
687 |
550 |
2806C-E 18TAG 1A |
3780×1536×2180 |
4555 |
|
TPD625P6-2 |
625 |
500 |
687 |
550 |
2806A-E18TAG2 |
3780×1536×2180 |
4555 |
|
TPD750P6 |
750 |
600 |
825 |
660 |
4006-23TAG2A |
4250×1690×2150 |
6460 |
|
TPD849P6 |
849 |
679 |
940 |
750 |
4006-23TAG3A |
4250×1690×2150 |
6500 |
|
TPD1001P6 |
1001 |
801 |
1103 |
883 |
4008TAG2 |
4735×2261×2256 |
7450 |
|
TPD1250P6 |
1250 |
1000 |
1375 |
1100 |
4012-46TWG2A |
4800×2100×2297 |
9030 |
|
TPD1375P6 |
1375 |
1100 |
1500 |
1200 |
4012-46TWG3A |
4800×2100×2297 |
9100 |
|
TPD1500P6 |
1500 |
1200 |
1650 |
1320 |
4012-46TAG2A |
4900×2100×2297 |
9730 |
|
TPD1690P6 |
1690 |
1350 |
1850 |
1480 |
4012-46TAG3A |
4900×2100×2297 |
9730 |
