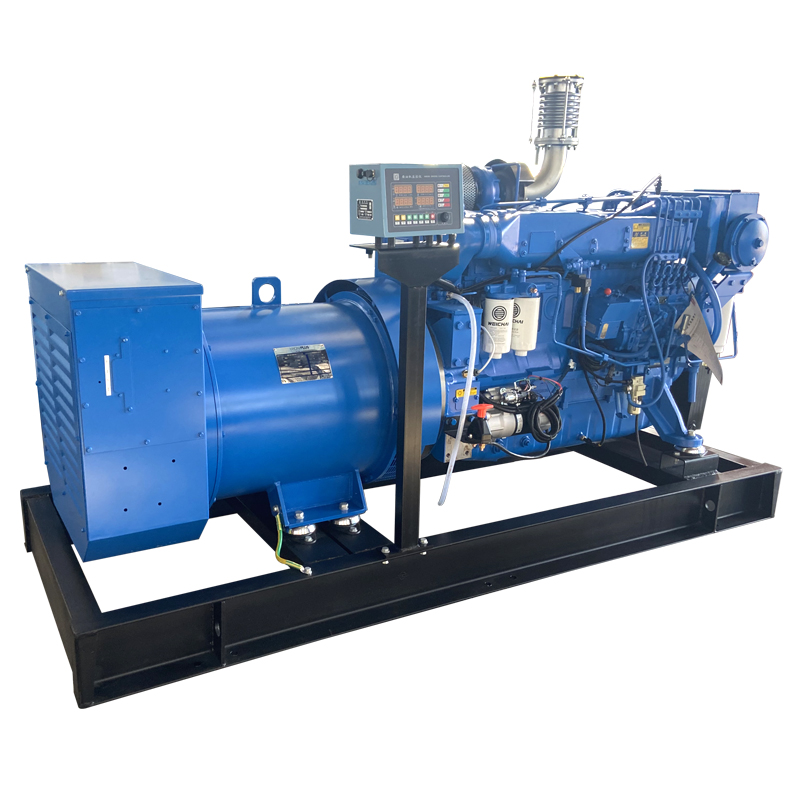

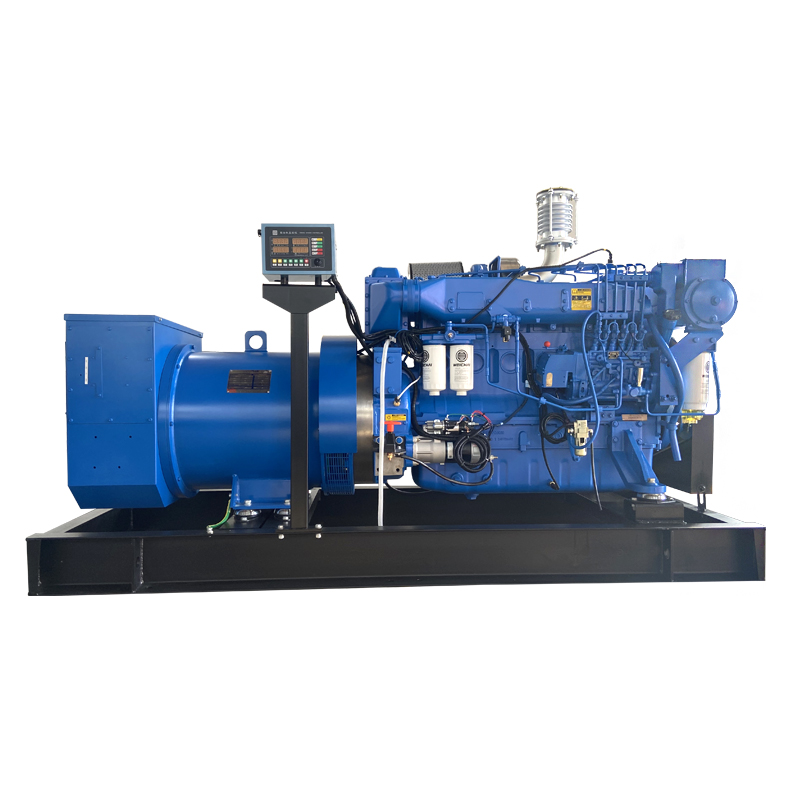

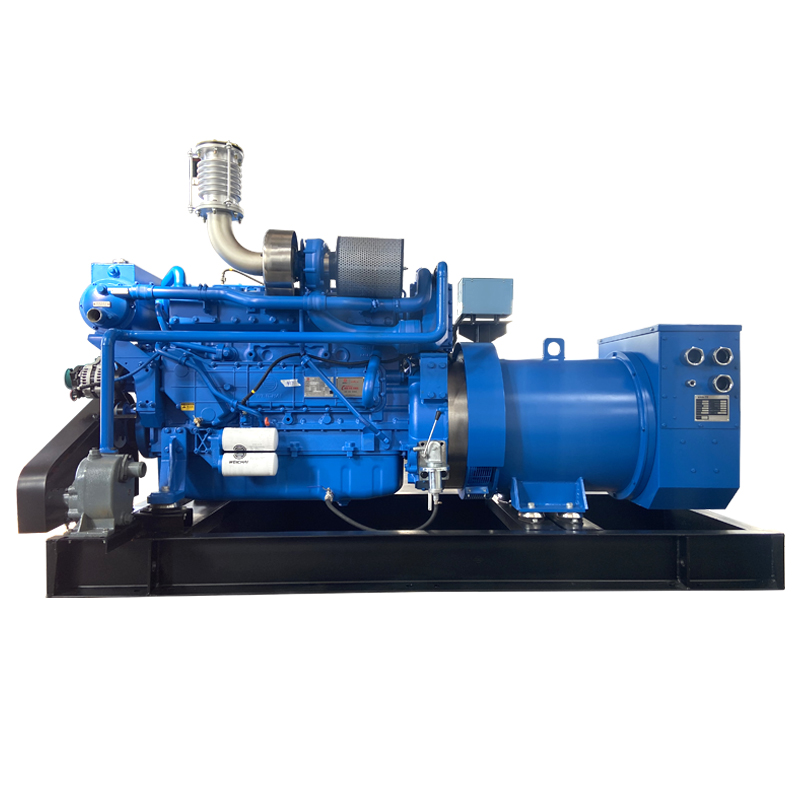

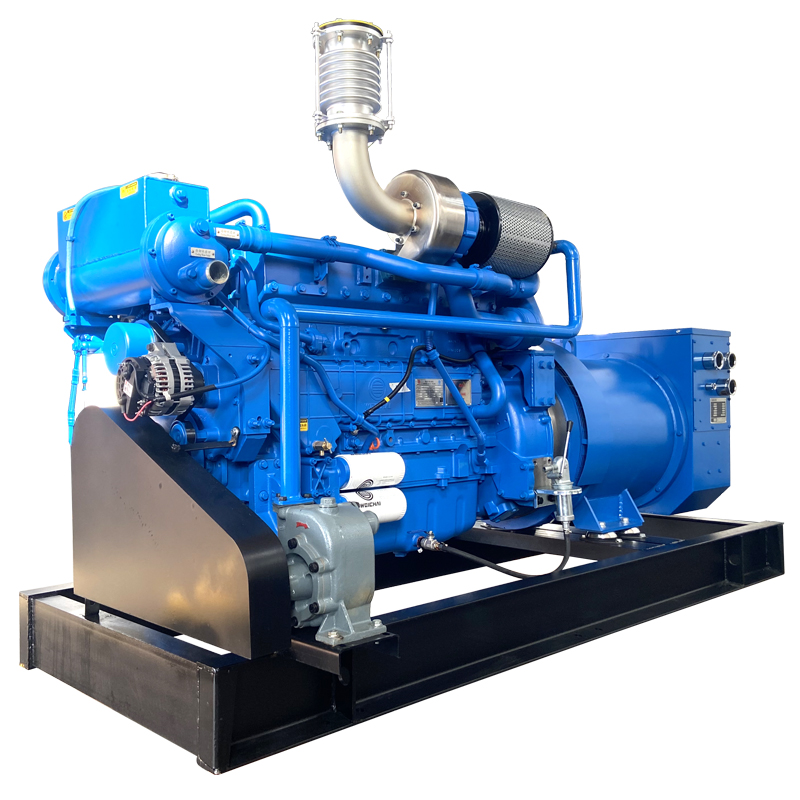

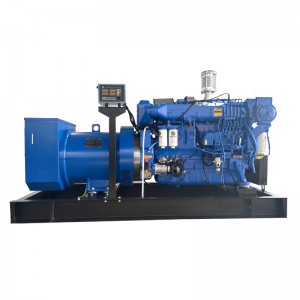

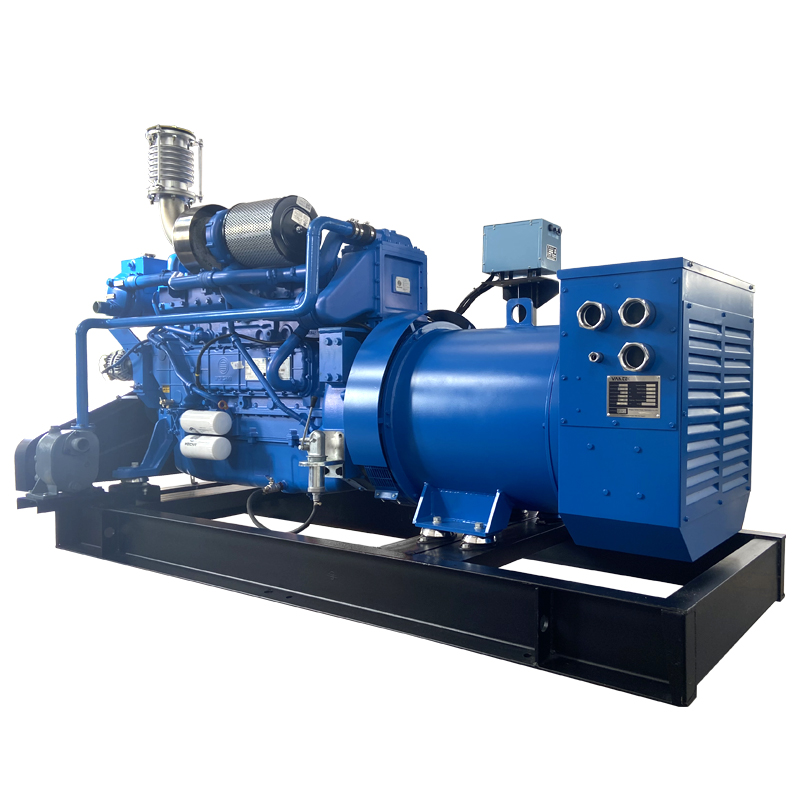

Weichai Marine Type Diesel Generator
WEICHAI is the earliest enterprise in China to research and produce generator sets, with more than 70 years of production history. WEICHAI marine diesel generator sets use engines independently developed by itself, equipped with well-known brand generators and controllers, with a wide range of power and speed, small size, light weight, compact structure, reliable use, advanced economic and technical indicators, and convenient for installation.
TONTEK—WEICHAI series marine diesel generator sets cover from 10KW to 900KW, low fuel consumption, low emissions, large torque, easy to start, high reliability, easy for operation and maintenance, mainly used in high-speed boats, passenger ships, fishing boats, bulk carriers , Ocean fishing boats, official ships, engineering ships etc.
Main Features
1. Cast iron body, grid structure, high strength and excellent cooling effect.
2. Equipped with a hand-press oil pump, a bypass oil centrifugal filter and a large-flow oil pump to ensure the stable performance of diesel engine.
3. All-copper seawater pump, cooling water and oil pipeline emergency interfaces ensure reliable operation of the diesel engine.
4. Air filter with new design, optimize the structure and tightness, high filtration efficiency, cleaner air intake, make the structure more compact and reasonable.
5. More convenient for filter element replacement.
6. The new designed oil pan is a marine engine structure, which increases the heat dissipation area of the oil and fully considers its shock absorption performance.
7. High reliability, with an average service life of more than 30,000 hours.
8. Good economy, optimize the configuration of engine air intake and fuel system, explore the potential of diesel engines, and reduce the fuel consumption.
9. Select Germany’s advanced technology, excellent quality of parts ensures the product with highly reliable.
10. Advanced design concept, optimize the structure according to user’s usage habits, easy for installation and maintenance.
■ CCS,BV,RINA,RS,BKI CLASS CERTIFICATE
■ IMO EMISSION CERTIFICATE
■ STAMFORD,LEROY-SOMER,MARATHON MARINE ALTERNATOR AS OPTIONAL
■ HEAT EXCHANGER COOLED AND KEEL COOLEDAS OPTIONAL
|
Generator spec. |
Engine Spec. |
Dimensions |
Weight |
||||
|
Model |
Rated power |
Frenquency /voltage |
Engine model |
Power/Speed |
|||
|
KW |
KVA |
Hz/ V |
KW/RPM |
L×W×H(mm) |
(Kgs) |
||
|
CCFJ10J-WTP |
10 |
12.5 |
50/400 |
WP2.1CD18E1 |
17.5/1500 |
1240*700*1115 |
467 |
|
CCFJ12J-WTP |
12 |
15 |
50/400 |
WP2.1CD18E1 |
17.5/1500 |
1240*700*1115 |
467 |
|
CCFJ16J-WTP |
16 |
20 |
50/400 |
WP2.5CD22E1 |
22/1500 |
1240*700*1115 |
467 |
|
CCFJ20J-WTP |
20 |
25 |
50/400 |
WP3.9CD33E1 |
33/1500 |
1314*700*1165 |
480 |
|
CCFJ24J-WTP |
24 |
30 |
50/400 |
WP3.9CD33E1 |
33/1500 |
1500*1080*1180 |
1130 |
|
D226B-3CD |
36/1500 |
||||||
|
CCFJ30J-WTP |
30 |
37.5 |
50/400 |
WP3.9CD38E1 |
38/1500 |
1510*1080*1180 |
1150 |
|
TD226B-3CD |
40/1500 |
||||||
|
CCFJ50J-WTP |
50 |
62.5 |
50/400 |
WP4CD66E200 |
60/1500 |
1695*1250*1180 |
1250 |
|
CCFJ75J-WTP |
75 |
93.8 |
50/400 |
WP4CD100E200 |
90/1500 |
1695*1250*1210 |
1350 |
|
CCFJ100J-WTP |
100 |
125 |
50/400 |
WP6CD132E200 |
120/1500 |
2125*1250*1170 |
1640 |
|
CCFJ120J-WTP |
120 |
150 |
50/400 |
WP6CD152E200 |
138/1500 |
2180*1250*1170 |
1650 |
|
CCFJ150J-WTP |
150 |
187.5 |
50/400 |
WP10CD200E200 |
182/1500 |
2520*1250*1530 |
1950 |
|
CCFJ180J-WTP |
180 |
225 |
50/400 |
WP10CD238E200 |
216/1500 |
2520*1250*1550 |
1980 |
|
CCFJ200J-WTP |
200 |
250 |
50/400 |
WP10CD264E200 |
240/1500 |
2620*1250*1620 |
2100 |
|
CCFJ250J-WTP |
250 |
312.5 |
50/400 |
WP12CD317E200 |
288/1500 |
2650*1250*1660 |
2180 |
|
CCFJ300J-WTP |
300 |
375 |
50/400 |
WP13CD385E200 |
350/1500 |
2650*1250*1660 |
2300 |
|
CCFJ320J-WTP |
320 |
400 |
50/400 |
WP13CD385E200 |
350/1500 |
2650*1250*1660 |
2300 |
|
CCFJ360J-WTP |
360 |
450 |
50/400 |
6M26CD447E200 |
406/1500 |
3010*1040*1600 |
3844 |
|
CCFJ400J-WTP |
400 |
500 |
50/400 |
6M26CD506E200 |
460/1500 |
3030*1040*1600 |
3874 |
|
CCFJ450J-WTP |
450 |
562.5 |
50/400 |
6M33CD550E200 |
500/1500 |
3140*1040*1600 |
3896 |
|
CCFJ500J-WTP |
500 |
625 |
50/400 |
12M26CD748E200 |
680/1500 |
3524*1521*1927 |
6263 |
|
CCFJ600J-WTP |
600 |
750 |
50/400 |
12M26CD748E200 |
680/1500 |
3596*1521*1927 |
6413 |
|
CCFJ700J-WTP |
700 |
875 |
50/400 |
12M26CD902E200 |
820/1500 |
3820*1521*1927 |
6841 |
|
CCFJ800J-WTP |
800 |
1000 |
50/400 |
12M26CD1012E200 |
920/1500 |
3895*1521*1927 |
7060 |
|
CCFJ900J-WTP |
900 |
1125 |
50/400 |
12M33CD1100E200 |
1000/1500 |
3914*1521*1927 |
7267 |
■ CCS,BV,RINA,RS,BKI CLASS CERTIFICATE
■ IMO EMISSION CERTIFICATE
■ STAMFORD,LEROY-SOMER,MARATHON MARINE ALTERNATOR AS OPTIONAL
■ HEAT EXCHANGER COOLED AND KEEL COOLEDAS OPTIONAL
|
Generator spec. |
Engine Spec. |
Dimensions |
Weight |
||||
|
Model |
Rated power |
Frenquency /voltage |
Engine model |
Power/Speed |
|||
|
KW |
KVA |
Hz/ V |
kW/RPM |
L×W×H(mm) |
(Kgs) |
||
|
CCFJ24J-WTP |
24 |
30 |
60/440 |
D226B-3CD1 |
36/1800 |
1500*1080*1180 |
1130 |
|
CCFJ30J-WTP |
30 |
37.5 |
60/440 |
D226B-3CD1 |
36/1800 |
1550*1080*1180 |
1130 |
|
CCFJ40J-WTP |
40 |
50 |
60/440 |
TD226B-3CD1 |
50/1800 |
1630*1080*1180 |
1180 |
|
CCFJ50J-WTP |
50 |
62.5 |
60/440 |
WP4CD66E201 |
60/1800 |
1695*1250*1210 |
1250 |
|
CCFJ75J-WTP |
75 |
93.8 |
60/440 |
WP4CD100E201 |
90/1800 |
1695*1250*1210 |
1270 |
|
CCFJ90J-WTP |
90 |
112.5 |
60/440 |
WP4CD118E201 |
108/1800 |
1695*1250*1210 |
1280 |
|
CCFJ100J-WTP |
100 |
125 |
60/440 |
WP6CD132E201 |
120/1800 |
2125*1250*1170 |
1640 |
|
CCFJ120J-WTP |
120 |
160 |
60/440 |
WP6CD158E201 |
138/1800 |
2180*1250*1170 |
1650 |
|
CCFJ150J-WTP |
150 |
187.5 |
60/440 |
WP10CD200E201 |
182/1800 |
2520*1250*1530 |
1950 |
|
CCFJ180J-WTP |
180 |
225 |
60/440 |
WP10CD238E201 |
216/1800 |
2520*1250*1550 |
1980 |
|
CCFJ200J-WTP |
200 |
260 |
60/440 |
WP10CD264E201 |
240/1800 |
2620*1250*1620 |
2100 |
|
CCFJ250J-WTP |
250 |
312.5 |
60/440 |
WP12CD317E201 |
288/1800 |
2650*1250*1640 |
2140 |
|
CCFJ300J-WTP |
300 |
375 |
60/440 |
WP13CD385E201 |
350/1800 |
2650*1250*1660 |
2280 |
|
CCFJ320J-WTP |
320 |
400 |
60/440 |
WP13CD385E201 |
350/1800 |
2650*1250*1660 |
2300 |
|
CCFJ300J-WTP |
300 |
375 |
60/440 |
6M26CD447E201 |
406/1800 |
3010*1040*1600 |
3844 |
|
CCFJ360J-WTP |
360 |
450 |
60/440 |
6M26CD447E201 |
406/1800 |
3010*1040*1600 |
3844 |
|
CCFJ400J-WTP |
400 |
500 |
60/440 |
6M26CD506E201 |
460/1800 |
3030*1040*1600 |
3874 |
|
CCFJ450J-WTP |
450 |
562.5 |
60/440 |
6M33CD575E201 |
523/1800 |
3140*1040*1600 |
3896 |
|
CCFJ600J-WTP |
600 |
750 |
60/440 |
12M26CD748E201 |
680/1800 |
3596*1521*1927 |
6413 |
|
CCFJ650J-WTP |
650 |
812.5 |
60/440 |
12M26CD792E201 |
720/1800 |
3620*1521*1927 |
6568 |
|
CCFJ700J-WTP |
700 |
875 |
60/440 |
12M26CD902E201 |
820/1800 |
3820*1521*1927 |
6841 |
|
CCFJ800J-WTP |
800 |
1000 |
60/440 |
12M26CD1012E201 |
920/1800 |
3895*1521*1927 |
7060 |
|
CCFJ900J-WTP |
900 |
1125 |
60/440 |
12M33CD1150E201 |
1046/1800 |
3914*1521*1927 |
7267 |
