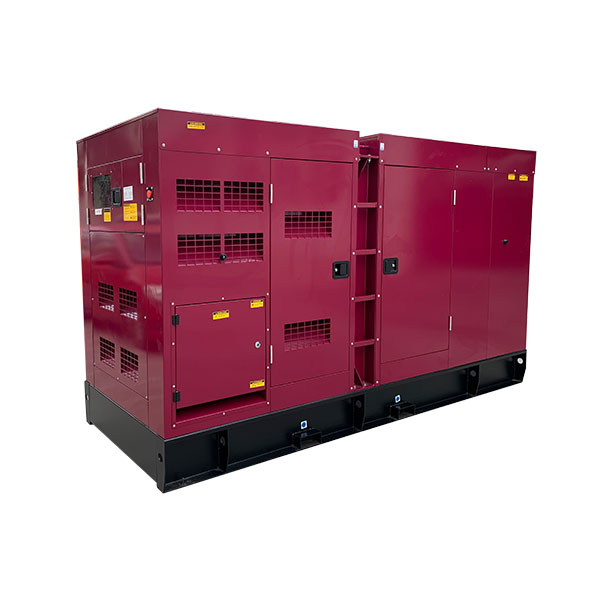

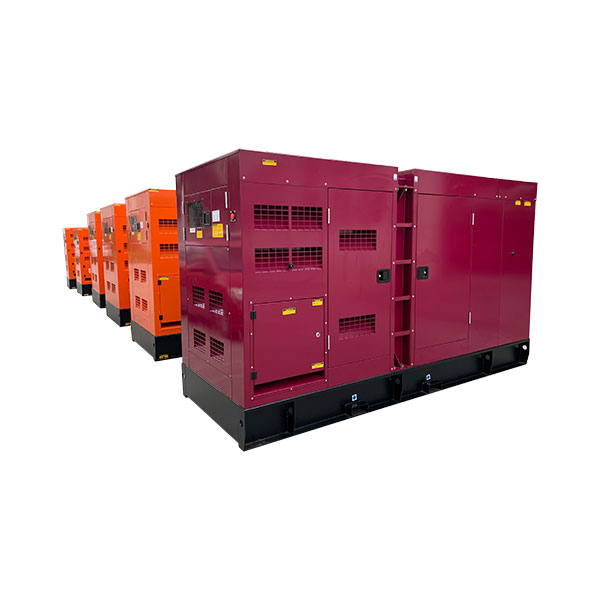

Yuchai Silent Type Diesel Generator
YUCHAI company,headquartered in Yulin, Guangxi,appeal for“green development harmony win-win”,which happens to coincide with the concept of TONTEK POWER. The fuel and lubrication consumption rate of TONTEK POWER is much better than similar domestic products.TONTEK POWER YUCHAI series on the basis of long time cooperation with each other have high reputation among the customers due to the low fuel consumption、low emissions、low noise、small vibration、high torque、high reliability、strong power、strong adaptability、comprehensive and convenient service.
YUCHAI engine structure
1.The engine uses a concave-convex block made of alloy material,with cured stiffeners on both side to enhance the rigidity and shock absorption performance, additional support mounted in the middle of the block makes the installation more reliable.
2.Built-in auxiliary inside the engine block,with a special nozzle to the piston continuous injection cooling, which effectively reduces the thermal load.
3.The crankshaft assembly with patented optimization design, equipped with a new type of silicone oil torsional vibration damper,ensure the diesel engine work more smoothly.
4.The diesel engine is equipped with a monitor and an emergency stop device, which can realize automatic alarm and emergency shutdown of water temperature、oil temperature、oil pressure and over speed.
5.The engine block and cylinder head with integral forged steel crankshaft and alloy cast iron, small size, light weight and high reliability.
6.Select reinforced high-pressure oil pump, high fuel injection pressure and low fuel consumption.
7.Use proprietary piston ring sealing technology by YUCHAI to reduce lubricant consumption
8.Choose four-valve technology, single electronically controlled pump and fuel injector by imported technology, good atomization, full combustion and low fuel consumption.
9.Use gear-driven pump in cooling system with high efficiency, double-selection thermostat design make sure the high reliability of the cooling system.
10.Large power reserve,outstanding power performance, excellent generality of components.
Features of diesel generators power by YUCHAI
1.Power range from 20KW to 813KW, digital control system with high intelligence.
2.Small vibration, low noise and high reliability.
3.Low emissions,meet the environmental protection requirements.
4.Innovative design、 high mobility、low center of gravity、strong power、sophisticated manufacture、beautiful appearance and compact structure.
5.More durable because of the thick oil tube selection，avoid the oil leakage owing to tubing damage caused by vibration.
6.Large power reserve, stable operation, wonderful speed regulation performance and low fuel consumption.
|
Model |
Prime Power (KVA/KW) |
Standby Power(KVA/KW) |
Engine Model |
Dimension(MM) |
Weight(KG) |
||
|
TPD45Y5 |
45 |
36 |
50 |
40 |
YC4D60-D21 |
2550×1080×1650 |
1100 |
|
TPD63Y5 |
63 |
50 |
69 |
55 |
YC4D85Z-D20 |
2550×1080×1650 |
1180 |
|
TPD68Y5 |
68 |
55 |
75 |
60 |
YC4D90Z-D21 |
2550×1080×1650 |
1200 |
|
TPD80Y5 |
80 |
64 |
88 |
70 |
YC4A100Z-D20 |
2550×1080×1650 |
1450 |
|
TPD102Y5 |
102 |
82 |
113 |
90 |
YC6B135Z-D20 |
2850×1140×1750 |
1780 |
|
TPD117Y5 |
117 |
94 |
129 |
103 |
YC6B155L-D21 |
3150×1300×1780 |
2050 |
|
TPD136Y5 |
136 |
109 |
150 |
120 |
YC6B180L-D20 |
3150×1300×1780 |
2140 |
|
TPD157Y5 |
157 |
125 |
173 |
138 |
YC6B205L-D20 |
3150×1300×1780 |
2160 |
|
TPD176Y5 |
176 |
141 |
194 |
155 |
YC6A230L-D20 |
3150×1400×1900 |
2260 |
|
TPD188Y5 |
188 |
150 |
206 |
165 |
YC6A245L-D21 |
3150×1400×1900 |
2300 |
|
TPD267Y5 |
267 |
214 |
294 |
235 |
YC6MK350L-D20 |
4000×1500×2250 |
3300 |
|
TPD319Y5 |
319 |
255 |
351 |
281 |
YC6MK420L-D20 |
4000×1500×2250 |
3500 |
|
TPD365Y5 |
365 |
292 |
401 |
321 |
YC6MJ480L-D20 |
4000×1500×2250 |
3600 |
|
TPD418Y5 |
418 |
335 |
460 |
368 |
YC6T550L-D21 |
4600×1750×2520 |
4880 |
|
TPD456Y5 |
456 |
365 |
501 |
401 |
YC6T600L-D22 |
4600×1750×2520 |
5000 |
|
TPD501Y5 |
501 |
401 |
551 |
441 |
YC6T660L-D20 |
4600×1750×2520 |
5120 |
|
TPD591Y5 |
591 |
473 |
650 |
520 |
YC6TD780L-D20 |
4600×1750×2520 |
5600 |
|
TPD636Y5 |
636 |
509 |
700 |
560 |
YC6TD840L-D20 |
4600×1750×2520 |
5700 |
|
TPD773Y5 |
773 |
618 |
850 |
680 |
YC6C1020L-D20 |
5200×2100×2800 |
9000 |
|
TPD813Y5 |
813 |
650 |
894 |
715 |
YC6C1070L-D20 |
5200×2100×2800 |
9200 |
|
Model |
Prime Power (KVA/KW) |
Standby Power(KVA/KW) |
Engine Model |
Dimension(MM) |
Weight(KG) |
||
|
TPD20Y5 |
20 |
16 |
23 |
18 |
4D24G6 |
2000×900×1480 |
750 |
|
TPD25Y5 |
25 |
20 |
28 |
22 |
4D24G7 |
2000×900×1480 |
780 |
|
TPD30Y5 |
30 |
24 |
33 |
26 |
4D24TG2 |
2000×900×1480 |
840 |
|
TPD40Y5 |
40 |
32 |
44 |
35 |
4D24TG0 |
2000×900×1480 |
860 |
|
TPD50Y5 |
50 |
40 |
55 |
44 |
YC4D75-D34 |
2550×1080×1650 |
1150 |
|
TPD56Y5 |
56 |
45 |
63 |
50 |
YC4D80-D34 |
2550×1080×1650 |
1200 |
|
TPD63Y5 |
63 |
50 |
70 |
55 |
YC4D90-D34 |
2550×1080×1650 |
1200 |
|
TPD73Y5 |
73 |
58 |
80 |
64 |
YC4D105-D34 |
2550×1080×1650 |
1240 |
|
TPD88Y5 |
88 |
70 |
100 |
80 |
YC4D120-D30 |
2550×1080×1650 |
1300 |
|
TPD100Y5 |
100 |
80 |
113 |
90 |
YC4D140-D30 |
2550×1080×1650 |
1300 |
|
TPD113Y5 |
113 |
90 |
125 |
100 |
YC4D155-D30 |
2550×1080×1650 |
1350 |
|
TPD100Y5 |
100 |
80 |
113 |
90 |
YC4A140-D30 |
2850×1140×1750 |
1600 |
|
TPD113Y5 |
113 |
90 |
125 |
100 |
YC4A155-D30 |
2850×1140×1750 |
1640 |
|
TPD113Y5 |
113 |
90 |
125 |
100 |
YC4A165-D30 |
2850×1140×1750 |
1640 |
|
TPD138Y5 |
138 |
110 |
150 |
120 |
YC4A190-D30 |
2850×1140×1750 |
1700 |
|
TPD138Y5 |
138 |
110 |
150 |
120 |
YC6A190-D30 |
3150×1400×1900 |
2160 |
|
TPD150Y5 |
150 |
120 |
165 |
132 |
YC6A205-D30 |
3150×1400×1900 |
2240 |
|
TPD175Y5 |
175 |
140 |
188 |
150 |
YC6A230-D30 |
3150×1400×1900 |
2280 |
|
TPD188Y5 |
188 |
150 |
200 |
160 |
YC6A245-D30 |
3150×1400×1900 |
2300 |
|
TPD200Y5 |
200 |
160 |
225 |
180 |
YC6A275-D30 |
3150×1400×1900 |
2300 |
|
TPD250Y5 |
250 |
200 |
275 |
220 |
YC6MK350-D30 |
4000×1500×2250 |
3300 |
|
TPD313Y5 |
313 |
250 |
350 |
280 |
YC6MK420-D30 |
4000×1500×2250 |
3500 |
|
TPD350Y5 |
350 |
280 |
375 |
300 |
YC6MK450-D30 |
4000×1500×2250 |
3500 |
|
TPD375Y5 |
375 |
300 |
413 |
330 |
YC6K500-D31 |
4200×1600×2520 |
4500 |
|
TPD375Y5 |
375 |
300 |
413 |
330 |
YC6K500-D30 |
4200×1600×2520 |
4500 |
|
TPD400Y5 |
400 |
320 |
438 |
350 |
YC6K520-D30 |
4500×1600×2520 |
4600 |
|
TPD438Y5 |
438 |
350 |
480 |
385 |
YC6K570-D30 |
4600×1750×2520 |
4900 |
|
Model |
Prime Power (KVA/KW) |
Standby Power(KVA/KW) |
Engine Model |
Dimension(MM) |
Weight(KG) |
||
|
TPD50Y6 |
50 |
40 |
55 |
44 |
YC4D65-D20 |
2550×1080×1650 |
1050 |
|
TPD63Y6 |
63 |
50 |
69 |
55 |
YC4D80Z-D20 |
2550×1080×1650 |
1150 |
|
TPD75Y6 |
75 |
60 |
83 |
66 |
YC4D100Z-D20 |
2550×1080×1650 |
1240 |
|
TPD100Y |
100 |
80 |
110 |
88 |
YC6B130Z-D20 |
2850×1140×1750 |
1750 |
|
TPD121Y6 |
121 |
97 |
134 |
107 |
YC6B160Z-D20 |
2850×1140×1750 |
1780 |
|
TPD150Y6 |
150 |
120 |
165 |
132 |
YC6A200Z-D20 |
3150×1400×1900 |
2240 |
|
TPD159Y6 |
159 |
127 |
175 |
140 |
YC6B210L-D20 |
3150×1400×1900 |
2150 |
|
TPD188Y6 |
188 |
150 |
206 |
165 |
YC6A245L-D20 |
3150×1400×1900 |
2300 |
|
TPD175Y6 |
200 |
160 |
221 |
177 |
YC6MK265Z-D20 |
4000×1500×2250 |
3100 |
|
TPD273Y6 |
273 |
218 |
300 |
240 |
YC6MK360L-D20 |
4000×1500×2250 |
3300 |
|
TPD319Y6 |
319 |
255 |
351 |
281 |
YC6MK420L-D21 |
4000×1500×2250 |
3500 |
|
TPD365Y6 |
365 |
292 |
400 |
320 |
YC6MJ480L-D21 |
4000×1500×2250 |
3750 |
|
TPD501Y6 |
501 |
401 |
551 |
441 |
YC6T660L-D21 |
4600×1750×2520 |
5000 |
|
Model |
Prime Power (KVA/KW) |
Standby Power(KVA/KW) |
Engine Model |
Deminsions(MM) |
Weight(KG) |
||
|
TPD25Y6 |
25 |
20 |
28 |
22 |
4D24G3 |
2000×900×1480 |
750 |
|
TPD25Y6-A |
25 |
20 |
28 |
22 |
4D24G3/A |
2000×900×1480 |
750 |
|
TPD31Y6 |
31 |
25 |
34 |
27 |
4D24G1 |
2000×900×1480 |
760 |
|
TPD31Y6-A |
31 |
25 |
34 |
27 |
4D24G1/A |
2000×900×1480 |
760 |
|
TPD41Y6 |
41 |
33 |
45 |
36 |
4D24TG3 |
2000×900×1480 |
850 |
|
TPD41Y6A |
41 |
33 |
45 |
36 |
4D24TG3/A |
2000×900×1480 |
850 |
|
TPD45Y6 |
45 |
36 |
50 |
40 |
4D24TG4/N |
2000×900×1480 |
860 |
|
TPD68Y6 |
68 |
55 |
75 |
60 |
YC4D90-D36 |
2550×1080×1650 |
1200 |
|
TPD80Y6 |
80 |
64 |
88 |
70 |
YC4D105-D36 |
2550×1080×1650 |
1240 |
|
TPD88Y6 |
88 |
70 |
97 |
77 |
YC4D115-D36 |
2550×1080×1650 |
1240 |
|
TPD108Y6 |
108 |
86 |
119 |
95 |
YC4D140-D32 |
2550×1080×1650 |
1300 |
|
TPD117Y6 |
117 |
94 |
128 |
103 |
YC4D155-D32 |
2550×1080×1650 |
1300 |
|
TPD136Y6 |
136 |
109 |
150 |
120 |
YC4D180-D32 |
2550×1080×1650 |
1350 |
|
TPD157Y6 |
157 |
125 |
173 |
138 |
YC4A205-D32 |
2850×1140×1750 |
1750 |
|
TPD188Y6 |
188 |
150 |
206 |
165 |
YC6A245-D32 |
3150×1400×1900 |
2240 |
|
TPD231Y6 |
231 |
185 |
253 |
203 |
YC6A305-D32 |
3150×1400×1900 |
2280 |
|
TPD273Y6 |
273 |
218 |
300 |
240 |
YC6MK360-D30 |
4000×1500×2250 |
3400 |
|
TPD319Y6 |
319 |
255 |
351 |
281 |
YC6MK420-D31 |
4000×1500×2250 |
3500 |
|
TPD381Y6 |
381 |
305 |
419 |
335 |
YC6MK500-D32 |
4000×1500×2250 |
3600 |
